Description

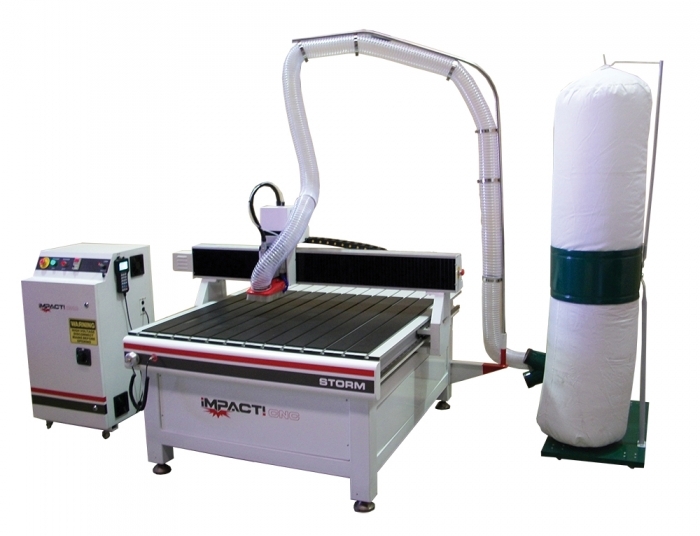

Impact CNC Storm Router Series
Cutting on the Storm is powered by an Italian HSD 1.5kw Manual Tool-Change Spindle. Materials are held down with a T-slot table top and dust is efficiently removed with the Impact CNC dust extraction system with is included as standard.
All these components are driven by the easy-to-use NC-Studio CNC Controller. The handset operation is extremely simple to use.
The Storm from Impact CNC is available in a compact 1.2m x 1.2m format. Machines come complete with on-site operator training and post-sale technical support. This ensures customers get full value from their Impact CNC router.
Code | Product Name | Size |
---|---|---|
STO-S2 | Impact CNC Storm S2 | 600mm x 900mm |
STORM | Impact CNC Storm | 1200mm x 1200mm |
Standard Features:
- 1.5kw HSD spindle with manual tool-change
- Accurate micro-stepping motors
- Quality linear rails and bearings
- High-accuracy ball-screw drive system
- NC-Studio controller system
- T-Slot extruded table top
- Efficient dust extraction system
- Only requires single-phase power
- Router 8 design and tool-path software
- Delivery, installation and training provided
Options:
- Multiple spindles
- Coolant Atomiser
Specifications
Feature | S2 | S | M | |
Working Area (X Axis) | 600mm | 1200mm | 1200mm | |
Working Area (Y Axis) | 900mm | 1200mm | 2400mm | |
Clearance (Z Axis) | 120mm | 120mm | 120mm | |
Spindle | Italian HSD 1.5kw | |||
Spindle Speed | Adjustable 0-18,000 rpm | |||
Tool Change | Manual Change | |||
Drive System (X & Y Axis) | Ball Screw | |||
Drive System (Z Axis) | Ball Screw | |||
Drive Motors | Micro-stepping motors | |||
Maximum Travel Speed | 6 metres per minute (100mm/sec) | |||
Table Top | T-Slot Clamp System | |||
Controller | NC-Studio | |||
Interface | USB | |||
Power Requirements | Single Phase 240V/50hz | |||
Machine Size (width) | 900mm | 1500mm | 1500mm | |
Machine Size (length) | 1200mm | 1500mm | 2700mm | |
Machine Net Weight | 180kg | 500kg | 600kg | |
Machine Gross Weight | 230kg | 650kg | 800kg |
